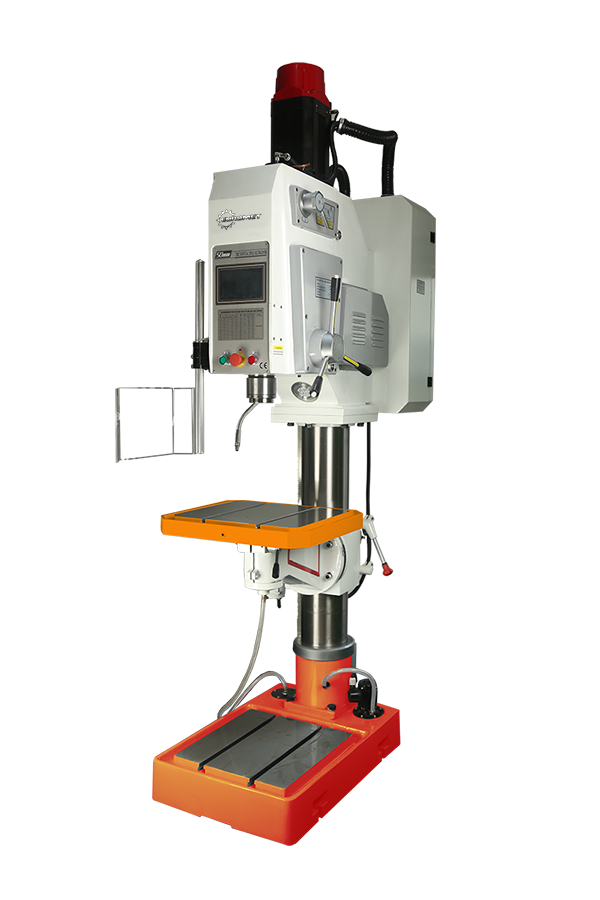

EUROMET ZK5050 CNC pillar drill

Column drilling machines

EUROMET ZK5050 CNC pillar drill

28 560,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

Suitable for processing a variety of materials and parts. Dual servo and two-speed stepless speed control, a wide range of spindle speeds allows processing of a variety of materials.

Quantity

European standard, full functionality, with servo threading function, U-shaped cover, and special accessories, multi-axis machine.

Industrial computer-assisted touchscreen, intelligent operation display screen. Touchscreen control allows multiple machines to be operated by a single person – easy operation, high speed, and efficiency. Suitable for processing a variety of materials and parts. The main motor and feed motor are servo motors; spindle speed and feed can be freely adjusted.

Dual servo and two-speed stepless speed control, a wide range of spindle speeds enable processing a variety of materials.

Standard equipment:

Large touchscreen display (allows you to control machine functions and view parameters)
Servo motor
Bipolar stepless speed control
Workspace lighting
CE Declaration of Conformity
User's manual in English

Technical data	Unit	Value
Drilling diameter	[mm]	50
Threading	[-]	M30
Distance between the spindle axis and the column	[mm]	360
Distance between the end of the spindle and the worktable	[mm]	570
Distance between the end of the spindle and the base	[mm]	1160
Spindle stroke	[mm]	240
Angular deflection of the working table	[°]	±45
Spindle taper	[-]	28 560
Number of spindle speeds	[-]	50 - 2000
Spindle speed range	[rpm/min]	0-765
Column diameter	[mm]	180
The dimension of the working surface of the table	[mm]	550 x 470
The dimension of the working surface of the base	[mm]	450 x 440
T-slot for base and table	[mm]	18 x 2 x 200
Coolant pump motor power	[kW]	40
Electromagnetic clutch (DLY 0-10S)	[dB]	32
Spindle motor power	[kW]	3,7 (serwo silnik)
Weight	[kg]	794
Dimensions (L × W × H)	[mm]	1220 x 680 x 2250
