CNC milling plotters

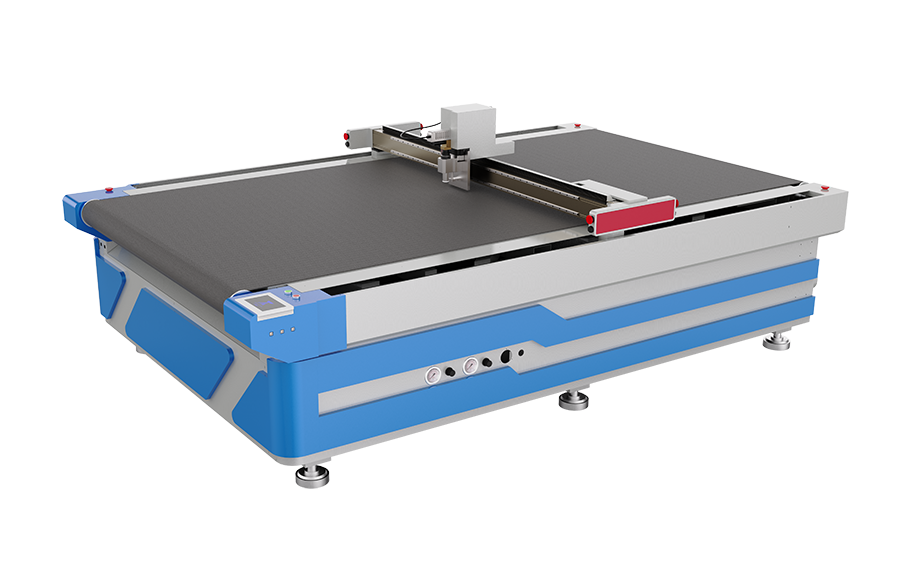

EUROMET MCF1625 CNC plotter (for cutting flexible materials)
143 960,00 zł net
No rating
12 months of warranty
Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
The EUROMET MCF milling plotter is designed for precise material processing, automatically and repeatedly cutting any shape from soft and flexible materials such as felt, foam, and textiles. The device perfectly reproduces complex patterns from digital designs, guaranteeing perfectly smooth edges and maximum production efficiency.
- Fully intelligent offline DPS system (LCD touchscreen; the machine can directly cut parts without programming)
- Fully digital servo motor
- High-pressure adsorption vacuum vortex fan
| Technical data | Unit | Value |
|---|---|---|
| X-axis travel | [mm] | 1600 |
| Y-axis travel | [mm] | 2500 |
| Operating speed (depending on materials) | [mm/s] | 0-2000 |
| Positioning accuracy | [mm] | 0,05 |
| Vacuum adsorption fan | [kW] | 9 |
| Nominal voltage | [V] | 400/220 |
| Supported formats | [-] | PLT, DXF, AI Format |
| Air pump | [kW] | 11 |
| Exhaust fan | [kW] | 9 |
| Weight | [kg] | 1200 |
| Dimensions | [mm] | 1850 x 1910 x 1380 |
